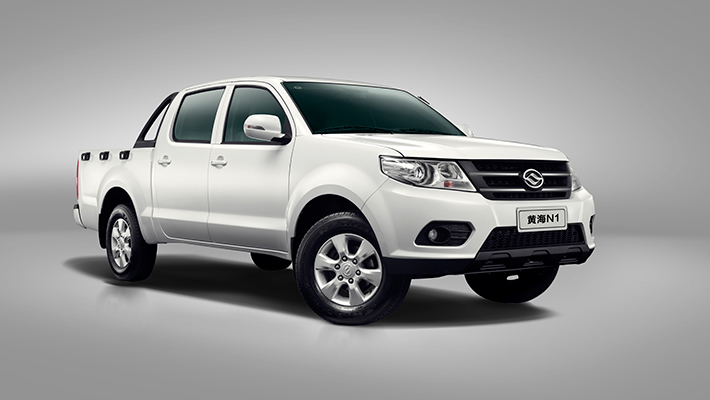

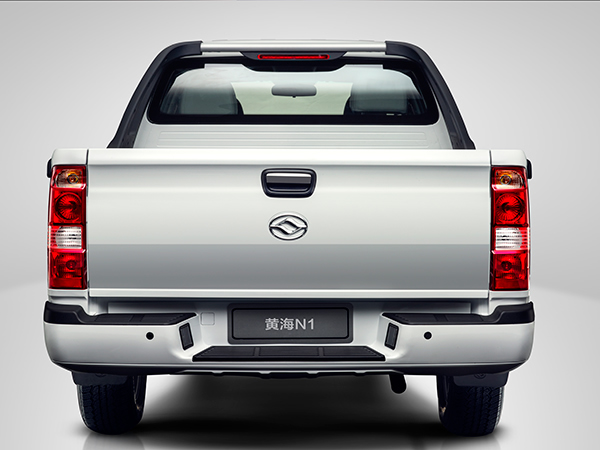

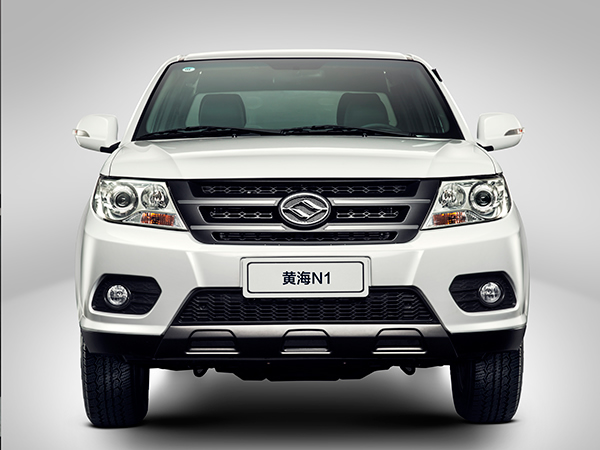

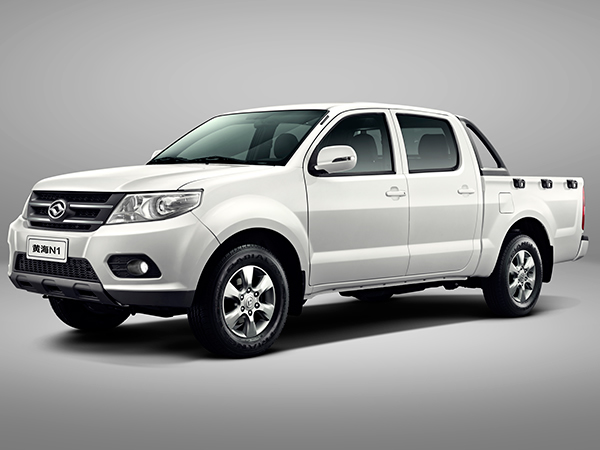

N1 Left Hand Drive Double Cab Pickup Truck
The N1 left hand drive pickup truck with double cabs is a brand new product developed by Huanghai working in conjunction with top class automobile design company. It is a multi-purpose light duty truck with four core advantages, namely great trafficability, high safety, excellent comfort and strong bearing capacity. In addition, this double cab pickup achieves the benefits of both Euro-American and Japanese pickups on chassis, interior, security and power.
Features of the Pickup Truck
1. Superior Chassis, with Western Style
The chassis is designed with state of the art Macpherson front suspension. Perfect matching between spiral spring and double wishbone suspension ensures flexible manipulation and comfort in driving. Reasonable shock absorption designs for both idle load and full load conditions enable the pickup truck to carry heavy load while providing high comfort. Specifically, its load capacity is up to 650kg.
2. Safety-First Design for the Highest Reliability
The N1 pickup truck, as a light vehicle comes with a totally enclosed body-on-frame construction. It uses a steel ladder frame constructed from one-piece punch forming side members and seven reinforced cross members. Due to 142 vertical section peak value and 130 cross section peak value as well as 2.5mm steel plate thickness, the side members have excellent bending and twisting resistance. This can effectively avoid frame deformation and allow the vehicle to pass over uneven terrain without damage.

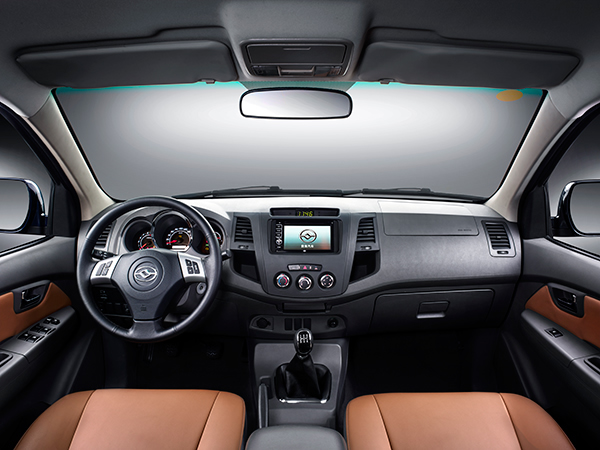

3. High-End Interior for Comfortable Driving
Aside from prominent chassis performance and body safety, our N1 left hand drive pickup truck enjoys a comprehensive upgrade on its interior level. Reasonable interior arrangement with harmonious tints and shades ensures simple elegance without compromising fashion and luxury. Exquisite instrument panel, genuine leather seats, and up to 21 storing areas highlight the concentration and attention we have paid on the design of N1 pickups.
4. Energy Efficient and Eco-Friendly Engine
Our N1 left hand drive pickup truck is equipped with Mitsubishi 4G69 engine or genuine ISUZU engine which enjoys high popularity among high end pickups. They provide abundant power, outstanding energy efficiency, environment friendliness and ideal compatibility, thus ensuring low use and maintenance cost.
| Huanghai N1 Pickup Specification | ||||||||||
| Drive Type | 2wd Diesel | 4wd Diesel | 2WD Gasoline | 4WD Gasoline | 2WD Gasoline | |||||
| Model | N33 | N41 | N42 | N57 | N34 | N30 | N29 | N56 | N23 | |
| Version | Basic | Sports | Luxury | Basic | Luxury | Sports | Basic | |||
| Basic Parameter | Outlined dimension： L×W×H(mm) | 5350×1790×1725 | ||||||||
| Cargo box dimension： | 1615×1520×465 | |||||||||
| Wheelbase （mm） | 3180 | |||||||||
| tread（front/rear） （mm） | 1502/1510 | |||||||||
| Rated passenger （person） | 2+3 | |||||||||
| Approach angle/ Departure angle（°） | ≥27/18 | |||||||||
| Minimum ground clearance （mm） | ≥190 | |||||||||
| Max speed (km/h) | 150 | |||||||||
| Curb weight (kg) | 1810 | 1710 | 1690 | |||||||
| Load capacity (kg) | 650 | 490 | 490 | |||||||
| Power Parameter | Engine | Isuzu | Mitsubishi | JM491 | ||||||
| Displacement （L） | 2.771 | 2.378 | 2.237 | |||||||
| Power（KW） | 75 | 105 | 76 | |||||||
| Torque (N.m) | 220 | 200 | 193 | |||||||
| Transmission | 5MT | 5MT | 5MT | |||||||
| Safety Parameter | Double airbag | - | - | ● | - | - | ● | - | - | - |
| Rear door child lock | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Front seat 3 point safety belt | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| High mounted stop lamp | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| ABS+EBD | - | ● | ● | ● | - | ● | ● | ● | - | |
| Mechanical ABS | ● | - | - | - | ● | - | - | ● | ||
| Reverse Sensor | - | ● | - | - | - | - | ● | - | ||
| Rear View Camera | - | - | ● | - | - | ● | - | - | - | |
| Comfort | Power Steering | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Power window | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Power Rear view mirror （turning light） | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Central locking | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Headlamp adjustable height | Manual | Manual | Auto | Manual | Manual | Auto | Manual | Manual | Manual | |
| Anti-glazing interior mirror | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| MP3 | ● | - | - | ● | ● | - | - | ● | ● | |
| MP5 | - | ● | - | - | - | - | ● | - | ||
| MP5+Navigator | - | - | ● | - | - | ● | - | - | - | |
| Electronic Environment protection A/C | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Cloth seat | ● | - | - | ● | ● | - | - | ● | ● | |
| Imitation leather seat | - | ● | ● | - | - | ● | ● | - | - | |
| Driver seat 8 direction adjusted | - | - | ● | - | - | ● | - | - | - | |
| Rear door speaker | - | - | ● | - | - | ● | - | - | - | |
| Appearance | Metallic Paint | - | ● | ● | ● | - | ● | ● | ● | - |
| Normal paint （white color） | ● | - | - | - | ● | - | - | - | ● | |
| Double side footpandel | - | - | ● | - | - | - | ● | - | - | |
| Rear cargo bed liner | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 16 inch Alum- alloy wheel | - | ● | ● | - | - | ● | ● | - | - | |
| 15 inch Alum- alloy wheel | ● | - | - | - | ● | - | - | - | ● | |
| Tyre Specifications | 225/75R15 | 235/70R16 | 245/65R17 | 225/75R15 | 235/70R16 | 245/65R17 | 215/75R15 | |||
| Note | 1、"●"WITH "○"OPTION "-"WITHOUT | |||||||||
