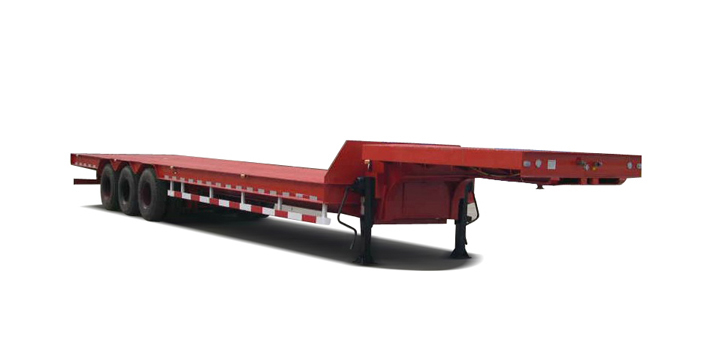

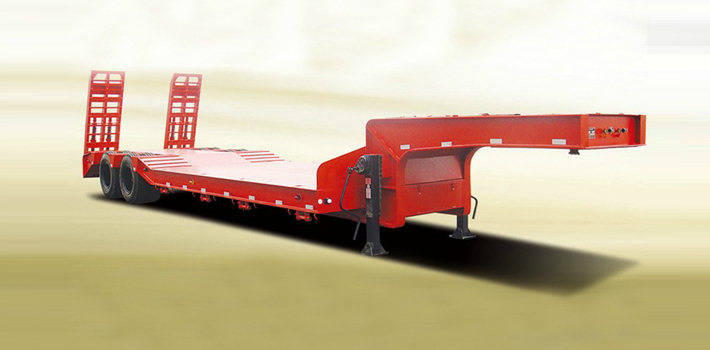

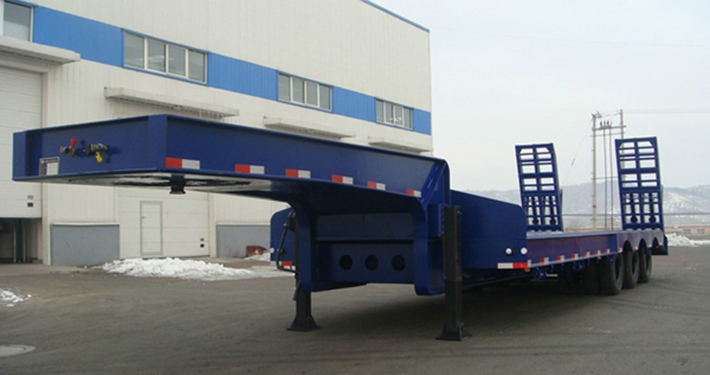

Lowbed Semi-trailer

Lowbed Semi-trailer
Lowbed Semi-trailer
Lowbed Semi-trailer

Technical Features
1. The lowbed semi-trailer can be fabricated with the structure of the flat plate type, concave beam type and exposed tire type. Its frame is the step shape. With the I-shape cross section, the longitudinal beam of the vehicle is marked by high rigidity and strength.
2. The main loading floor of the frame is low, guaranteeing the stability of the transportation. The product is suitable for transporting various types of engineering machinery, large equipment, steel product, etc.
3.The lowbed semi-trailer exploits the three-axle balance type, double-axle balance type or rigid suspension. Between the front and rear leaf springs, the mass balance block is available for enabling the equal change of the deflection of the front and rear leaf springs to make the front and rear axles bear balanced force.

Technical Specification
Main Technical Parameters Model DD9281TDP DD9400TDP
Overall Dimension (L×W×H) (mm) 12500×3000×3100 13000×3000×2765
Max. Total Mass (kg) 28000 40000
Rated Loading Capacity (kg) 19300 30000
Curb Mass (kg) 8700 10000
Wheelbase (mm) 9200+1300 7837+1300+1300
Rear Overhang (mm) 1500 1705
Main Assembly Mechanism and Parameters Rear Axle Form Built-in Brake Drum Axle
Service Brake Air Pressure Dual Circuit Drum Brake
Leaves Number of Leaf Spring (Front / Middle / Rear) -/8/8, -/10/10 8/8/8 , 10/10/10
Tyre 8.25R20
Number of Tyre 8 12
